VIVADOをダウンロード、インストール、起動してみよう!
FPGAのボード(ARTY S7)を使うには環境を構築する必要があります。
Spartan7の中身を作るには
VIVADOというXilinxのツールのダウンロードが必要です。DLはこちらから
ただ、登録が必要なので、必要事項を入れて登録してください。(個人の場合は会社がないので、その項目は「None」と入れました。)
「なし」と入れてね とあるのに なし と入れると英語じゃなきゃダメーと弾かれました。

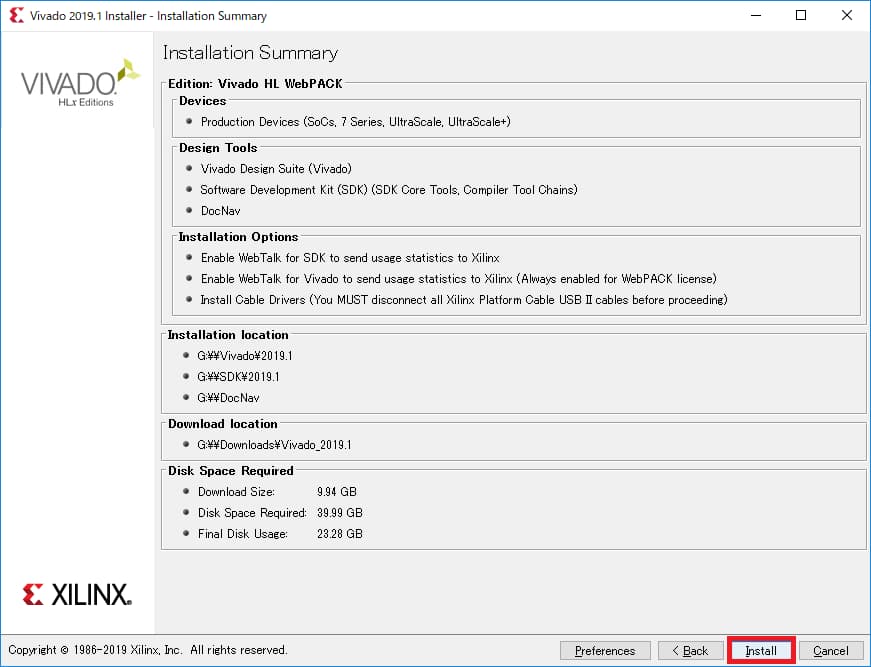

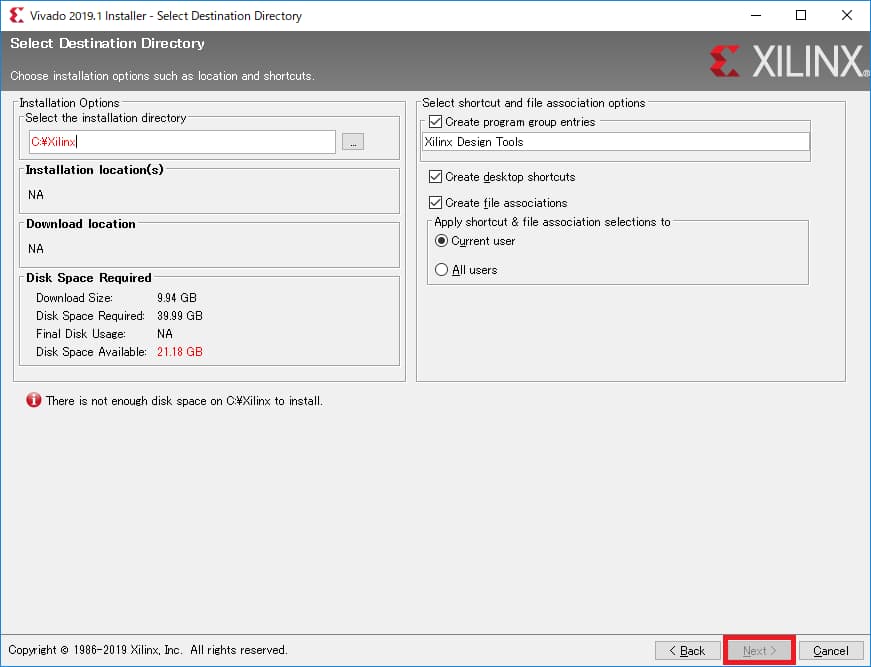

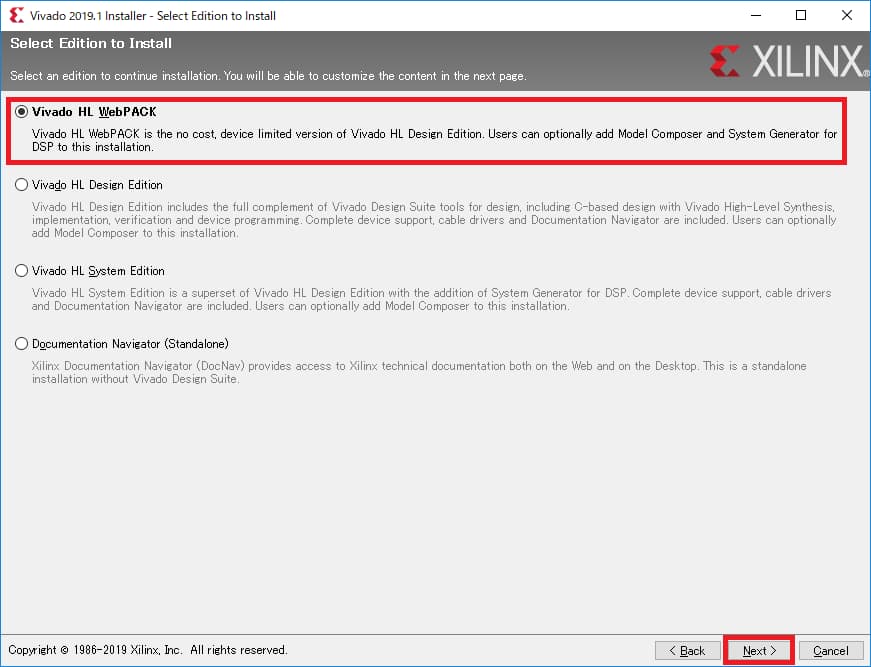

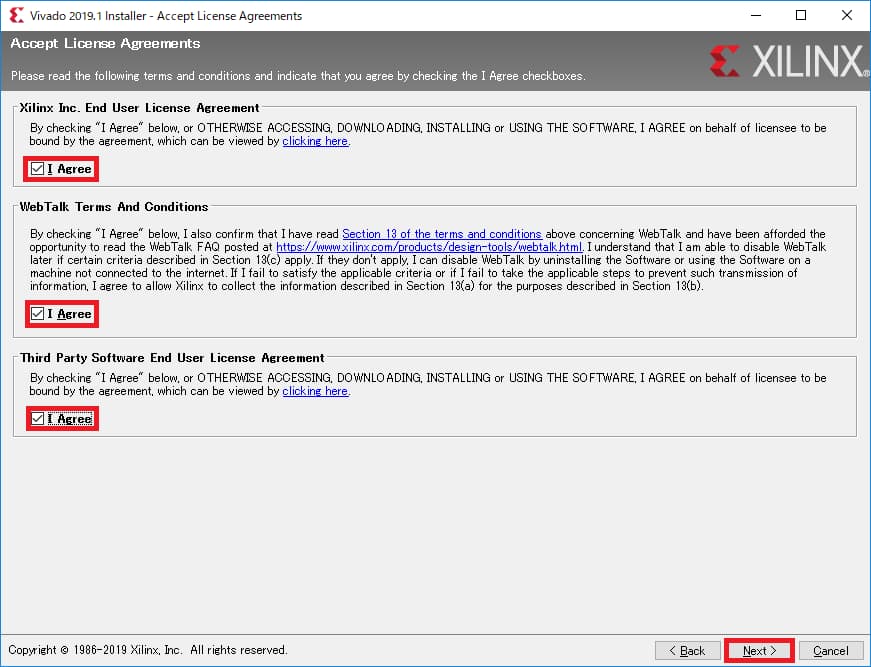

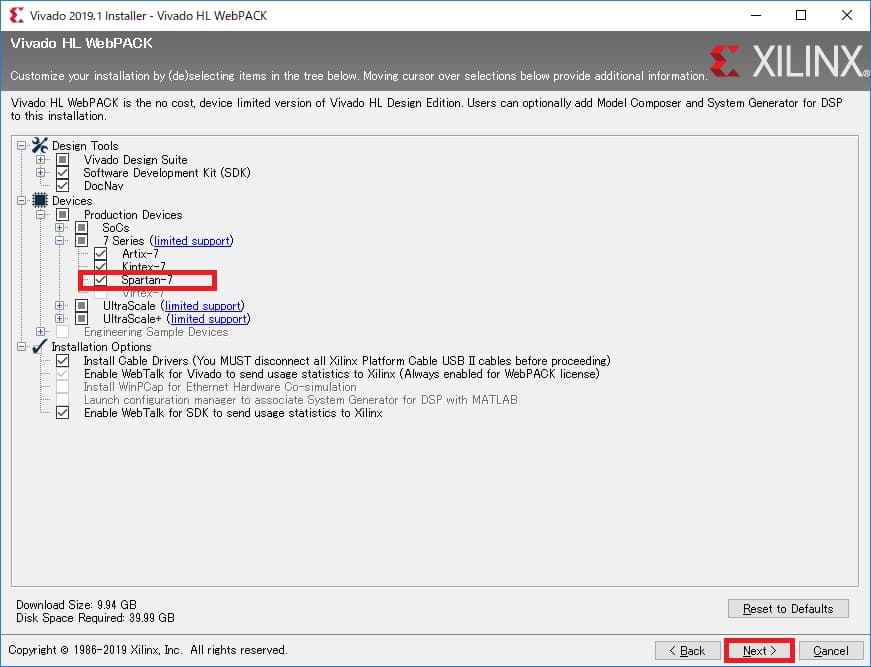

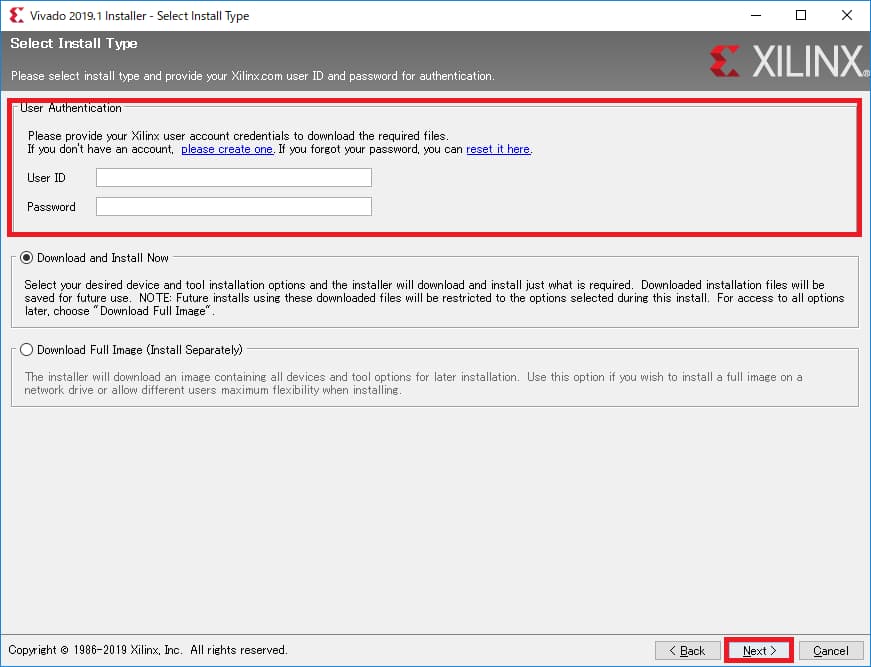

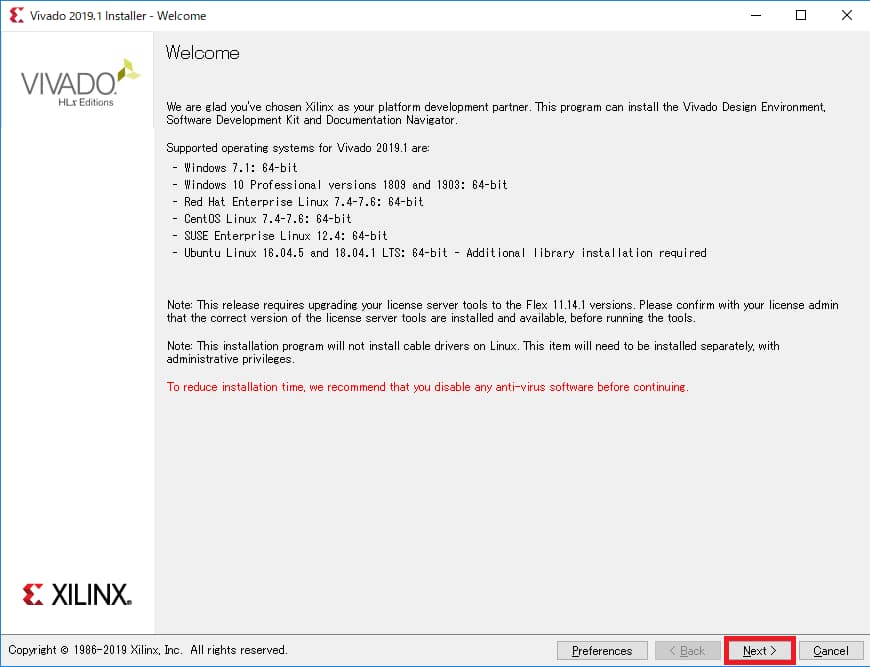

インストールについて
時間かかるので覚悟を・・・。順番に進めていきます。
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install1.jpg?resize=870%2C667&ssl=1)
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install2.jpg?resize=871%2C667&ssl=1)
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install3.jpg?resize=871%2C667&ssl=1)
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install4.jpg?resize=871%2C667&ssl=1)
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install5.jpg?resize=871%2C667&ssl=1)
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install6.jpg?resize=871%2C667&ssl=1)
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/install7.jpg?resize=871%2C667&ssl=1)
VIVADOを立ち上げてみよう!
デスクトップにこんな感じ↓のアイコンが出来ると思うのでダブルクリック!
![](https://i0.wp.com/doc-sin.life/wp-content/uploads/2019/06/icon.jpg?resize=88%2C53&ssl=1)
![](https://i2.wp.com/doc-sin.life/wp-content/uploads/2019/06/起動画面.jpg?fit=1024%2C596&ssl=1)
次回は実際にコードを書いてみます。
~続く~
